| Item NO.: | Twisted Pairing Control Cable Instrumentation Cable |
| Product Origin: | China |
| Color: | Black, Red, Blue or Other Colors |
| Lead Time: | 7-10 days |
| Order(MOQ): | 100m per roll |
| Application: | LV Power Control or Signal, Instrument |
| Warranty: | 18 Months Warranty |
| Certificate: | TUV, CE |
Standards: IBS / PAS 5308, BS EN 60228, BS 6234, BS EN 50363, BS EN / IEC 60332-1, BS EN / IEC 60332-3-24.
SUNRY Twisted Pairing Control/Instrumentation Cable is applicable to control cable products for instrumentation with AC-rated voltage 450/750V and below. The shielded cable for the roving detection device adopts a twisted aluminum-plastic composite film shield and copper wire braid shield with superior anti-interference performance, which is widely used in computer measurement and control devices. Armored instrumentation cables are also widely used between inverter power supplies and inverter motors
The armored LSZH version is generally used when there is an increased risk of mechanical damage, and the galvanized steel wire armor provides excellent protection.
Application
Twisted Pairing Control Cable are used in low-voltage electrical appliances, such as bridge grounding wire, bus, special for cars, high-speed cars, trailers, buses, and other large models of soft bonding.
TCWB screened flexible control cable can also be used in electrical karma, mechanical equipment industry, mainly used in power plants, power stations, electrolytic aluminum plants, non-ferrous metals, graphite carbon, chemical metallurgy and other industries,SWA armoured Instrument Cable is suitable for instruments and other electrical equipment in the signal transmission and control circuit. The armored Instrument cables are generally used for outdoor installation and are suitable for wet and damp areas.

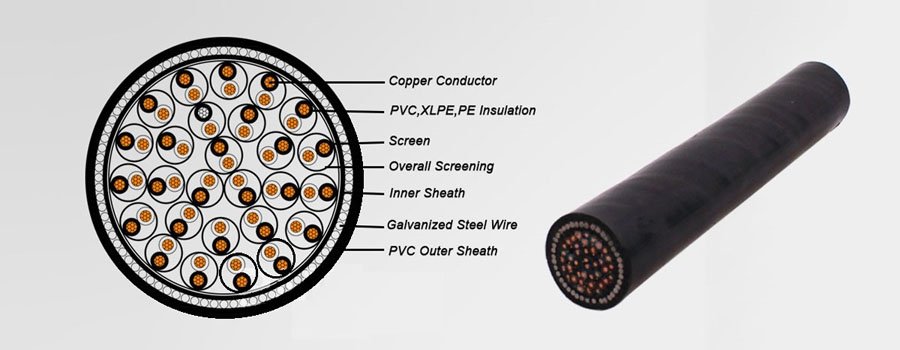

| Cable Type | Twisted Pairing Control/Instrumentation Cable | |||||
| Rated Voltage | 300/500V, Uo/U 450/750V | |||||
| Conductor | Plain annealed or Tinned coppper | |||||
| Insulation | XLPE (cross-linked polyethylene) or PE | |||||
| Pairing | Two or three insulated conductors uniformly twisted together with a lay not exceeding 100mm | |||||
| Binding Tape | PETP transparent tape | |||||
| Collective Shielding | Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire of 0.5mm² | |||||
| Inner Sheath | PVC or LSZH (Low Smoke Zero Halogen) | |||||
| Amour/Screen | TCWS (Tinned Copper Wire braided Screen) screen or Galvanized steel tape/wire armor | |||||
| Outer Sheath | PVC or LSZH (Low Smoke Zero Halogen) | |||||
| Number of cores | Generally 2cores, 3cores, 4cores,5cores, 7cores,12cores, 18cores,25cores, 34 cores, and other cores available | |||||
| Cross-section of Core | Generally 0.5mm2, 0.75mm2, 1mm2, 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, and other sizes available | |||||
| Temperature Range | -10~+70℃(wider temperature range can be customized) | |||||
| Bending Radius | 7.5xD (mobile installation) | |||||
| Packing Type: | Treated Wooden Drum | Packing: | Roll/Drum |
| Drum dimension: | 1100*1100*1000mm | Pallet weight: | 800-1200kg |
Packing: Cut cable in different lengths on drum or reel, possible cutting at the required length.
