Item NO.: | SRS PV Cable |
Product Origin: | China |
Color: | Black, Red, Other Colors |
Lead Time: | 7-10 days |
Order(MOQ): | 100m per roll |
Application: | Solar System Install |
Warranty: | 18 Months Warranty |
Certificate: | TUV, CE |
SUNRY Photovoltaic cable (Solar Cable) has the characteristics of weather resistance, cold resistance, high temperature resistance, friction resistance, uv resistance, ozone resistance, service life of at least 25 years. The cable is a green product with halogen free and low smoke, low halogen and low smoke.
PV cable is mainly used for connecting solar panels and inverters, wiring and connection of solar panel power generation and related components, especially for outdoor. The cable is suitable for fixed installations inside or outside of a duct or system, for solar farms, rooftop solar installations, floating power plants, etc. It is designed to meet the different needs of the solar industry.
TUV PV1-F Approvals TUV Rheinland 2PfG 1169.
EN H1Z2Z2-K Approvals TUV SUD EN50618:2014.
62930 IEC131 Approvals TUV Rheinland 62930 IEC.
UL 4703 Approvals UL4703 PV 16AWG~2AWG.

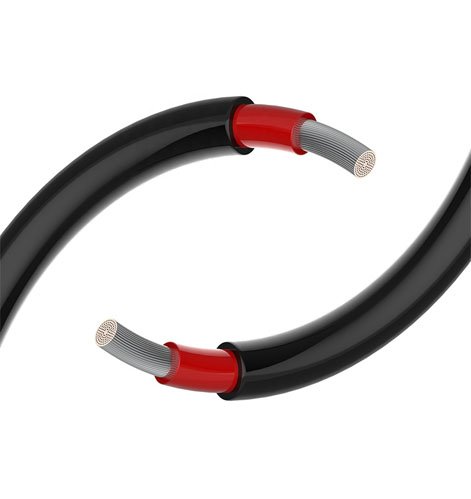

Single Core PV Cable
SUNRY photovoltaic cables solar products are TUV certified.
– Resistant to ozone, UV, and water vapor
– Lead-free, halogen-free, flame retardant, very low smoke emission
– Oil resistant – chemically resistant
– Conductor temporary overload up to +400 °C
– Ambient temperature -40°C to +110°C (TUV limit +90°C)
– Excellent flexibility under low-temperature conditions
– Resistant to cuts, tears, and crack extensions
– Insulation and outer sheath can be peeled off in one go
– Service life of more than 20 years (up to +90°C)
– Compatibility with standard connectors and connection systems
– Anti-bacterial, anti-microbial
Cross Section |
Conductor Structure |
Conductor Diameter |
Outer Diameter |
Conductor Resistance |
Rated Current |
Approx Weight |
NxMM2 | No. OD mm | mm | mm | Ω/Km | A | Kg/Km |
1x1.5 | 30/0.25 | 1.58 | 4.8 | 13.5 | 35 | 35 |
1x2.5 | 50/0.25 | 2.02 | 5.3 | 7.98 | 41 | 48 |
1x4.0 | 56/0.30 | 2.30 | 6.1 | 4.75 | 55 | 64 |
1x6.0 | 84/0.30 | 3.42 | 7.2 | 3.39 | 70 | 85 |
1x10 | 80/0.40 | 4.56 | 9.0 | 1.95 | 98 | 130 |
1x16 | 126/0.40 | 5.60 | 10.2 | 1.24 | 132 | 195 |
1x25 | 196/0.40 | 6.95 | 12.0 | 0.795 | 176 | 295 |
Product Weight: | 3.5-30kg | Packing: | 50m/100m/200m/Roll |
Pallet dimension: | 1100*1000*1000mm | Pallet weight: | 800kg |
1. High purity oxygen-free copper: High purity, anti aging, high conductivity, low loss, stronger current carrying capacity.
2. Low resistance: The resistivity directly affects the electricity consumption in the transmission process, the smaller the resistance, the more energy saving.
3. Low eccentricity: Ensure that the ground eccentricity is small, uniform thickness, safety guarantee, improve the current breakdown characteristics.
4. Double protection: Stable and durable, not easy to heat, effective anti-uv, prolong service life.
5. Flame retardant and high temperature resistance: The insulation layer is made of high quality XLPO with high strength, wear resistance and corrosion resistance.
6. Withstand pressure, bending and toughness: Good cold flexibility, not easy to break the skin, reduce natural wear, twists and turns, no cracking.
7. UV, ozone and hydrolysis resistant: Electron-beam cross-linked compound sheath.
8. High temperature resistance: the XPLO material do not melt or flow.
9. Very long service life: > 25 years at 90℃.
10. Compatible to all popular connectors: MC4 or other types.
Welcome to contact us for the assistance of an expert to start your own solar projects!
