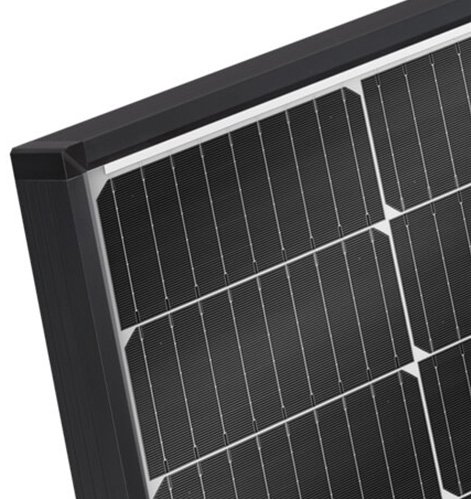

MONO Full Black 330W 340W 350W 120cells PERC 158MM 5BB Solar Panel With High Reliability

Item NO.: SR(325-350)-120M5-H
Product Origin: China
Color: Black, silver, full black
Lead Time: 7-10 days
Order(MOQ): 31 pcs per pallet
Module Dimension: 1684*1002*35mm
Warranty: 30 Years Warranty
Certificate: TUV, CE, ISO, ETL, CQC



Products Details

Sunry monocrystalline solar panel ensures higher module efficiency and higher power output. Max. efficiency reaches to 20.74%.

Sunry solar photovoltaic modules are designed for large electrical power requirements. With 25 years warranty, PERC offers high power, reliable performance for both on-grid and off-grid solar projects.

Features
  • Half-cell design brings higher efficiency which up to 20.74%.
  • Combination of series circuit and parallel circuit, reduced internal power loss.
  • 3 times EL tests throughout the whole process to ensure best quality and superior performance.
  • Innovative Full-Glue-Filled design of IP68 junction box for long-time weather resistance.
  • MBB technology decreases the distance between bus bars and finger grid line which is benefit to power increase.
  • The passivated rear side and laser grooving process of PERC cells to endow with the high efficiency.
  • >90% higher transmittance EVA, with higher GEL content to provide excellent encapsulation and protect cells from vibration for powerful durability.
  • Outstanding reliability proven by PVEL for stringent environment conditions: Sand, acid, salt and hail stones; 2400 Pa wind load and 5400 Pa snow load; Anti-PID function to guarantee high performance at low irradiance.
  • 30 years product power warranty, 12 years material and craftsmanship warranty.

Enquiry now

Parameters
Electrical Characteristics At Standard Test Conditions (STC)
Module SR(325-350)-120M5-H
Encapsulation Glass/EVA/Cell/EVA/Backsheet
Max. Power (W) 325 330 335 340 345 350
Max. Power Voltage (Vmp/V) 33.5 33.7 33.9 34.1 34.3 34.5
Max. Power Current (Imp/A) 9.71 9.80 9.89 9.98 10.06 10.15
Open Circuit Voltage (Voc/V) 40.4 40.6 40.8 41.0 41.2 41.4
Short Circuit Current (Isc/A) 10.27 10.33 10.39 10.46 10.53 10.75
Module Efficiency (%) 19.26 19.56 19.85 20.15 20.45 20.74
Power Tolerance (W) 0~+5W
Temperature Coefficient of Isc 0.033%/°C
Temperature Coefficient of Voc -0.26%/°C
Temperature Coefficient of Pmax -0.34%/°C
STC Irradiance 100w/m2, Cell Temperature 25℃, Air Mass 1.5
Packages
Product Weight: 19kg Packing: 31pcs/pallet, 924pcs/40HQ
Pallet dimension: 1720*1100*1180mm Pallet weight: 620kg



Applications

DC or AC Solar Energy System

  • Half cell solar panel with greater reliability over your solar panel system’s lifetime, with superior output in real-world conditions.​
  • High efficiency PERC mono solar panels is with a compact design and the flexibility to expand your system as your energy needs evolve, accommodating EV charging, AC storage, the electrification of home appliances and more.​
  • Used for DC off grid portable solar system or roof top or ground solar power system energy storage with battery.
  • Used for AC pv module microinverter systems combine industry-leading solar panel technology with advanced microinverter technology, enable ​to convert the​ electricity generated by your solar​ panels from direct current (DC) into​ alternating current (AC) that you can​ use directly in your home or export​ to the grid.​
  • Used for grid tie solar power plant, to produce solar clean energy.
  • Sunry solar panels with secure and sturdy packaging are widely sold abroad more than 86 countries, such as Lebanon, UAE, Spain, Ukraine, Poland, South Africa, Vietnam, and so on.
