| Item NO.: | SRD PV Cable |
| Product Origin: | China |
| Color: | Black, Red, Other Colors |
| Lead Time: | 7-10 days |
| Order(MOQ): | 100m per roll |
| Application: | Solar System Install |
| Warranty: | 18 Months Warranty |
| Certificate: | TUV, CE |
Standards: TUV Rheinland IEC 62930, EN 50618

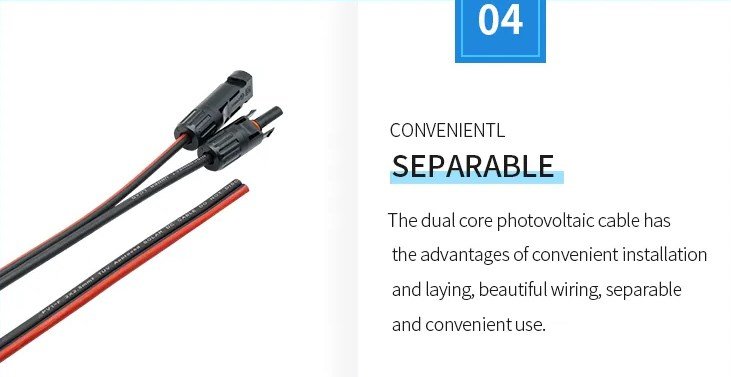

SUNRY Double core PV cable with impact tested for direct burial in the ground, mainly used for connecting solar panels and inverters, it is also used in scenarios where the emission of toxic gases in case of fire or smoke poses a potential risk to life and equipment, it is also suitable for wet locations and has a water resistance of AD8. Sunlight resistant, anti aging, using low smoke halogen-free flame retardant material, higher grade, more safe.

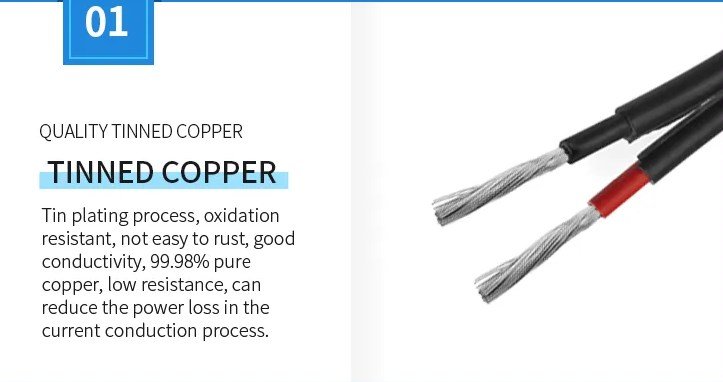

Adopting high-quality tinned pure copper: The copper core adopts surface tinning technology, which has characteristics such as oxidation resistance, rust resistance, and good conductivity. The internal use of 99.98% pure copper has low resistance and can reduce the power loss during current conduction.

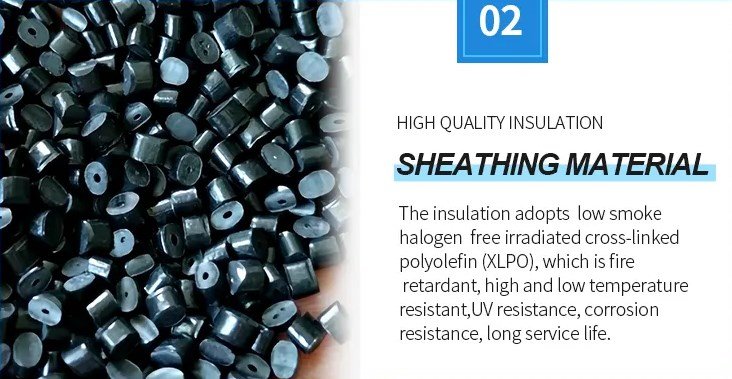

Environmentally friendly flame-retardant insulation material: the cable adopts radiation cross-linked Low smoke zero halogen flame-retardant environment-friendly polyolefin (XLPO), which is flame retardant, high and low temperature resistant, ultraviolet resistant, corrosion resistant, and has a long service life.
Single Core PV Cable
SUNRY photovoltaic cables solar products are TUV certified.
– Resistant to ozone, UV, and water vapor
– Lead-free, halogen-free, flame retardant, very low smoke emission
– Oil resistant – chemically resistant
– Conductor temporary overload up to +400 °C
– Ambient temperature -40°C to +110°C (TUV limit +90°C)
– Excellent flexibility under low-temperature conditions
– Resistant to cuts, tears, and crack extensions
– Insulation and outer sheath can be peeled off in one go
– Service life of more than 20 years (up to +90°C)
– Compatibility with standard connectors and connection systems
– Anti-bacterial, anti-microbial
|
Cross Section |
Conductor Structure |
Conductor Diameter |
Outer Diameter |
Conductor Resistance |
Rated Current |
Approx Weight |
| NxMM2 | No. OD mm | mm | mm | Ω/Km | A | Kg/Km |
| 2x1.5 | 30/0.25 | 0.8 | 8.3±0.2 | 13.3 | 30 | 72 |
| 2x2.5 | 50/0.25 | 0.8 | 9.2 ±0.2 | 7.98 | 41 | 92 |
| 2x4.0 | 56/0.30 | 0.8 | 12±0.2 | 4.75 | 55 | 126 |
| 2x6.0 | 84/0.30 | 0.9 | 13.5±0.2 | 3.39 | 70 | 168 |
| 2x10 | 80/0.40 | 0.9 | 17.6±0.2 | 1.95 | 98 | 240 |
| 2x10 | 80/0.40 | 0.9 | 17.6±0.2 | 1.95 | 98 | 240 |
| 2x16 | 126/0.40 | 1.1 | 19.8±0.2 | 1.24 | 132 | 380 |
| Product Weight: | 7.5-40kg | Packing: | 50m/100m/200m/Roll |
| Pallet dimension: | 1100*1000*1000mm | Pallet weight: | 800kg |
1. High purity oxygen-free copper: High purity, anti aging, high conductivity, low loss, stronger current carrying capacity.
2. Low resistance: The resistivity directly affects the electricity consumption in the transmission process, the smaller the resistance, the more energy saving.
3. Low eccentricity: Ensure that the ground eccentricity is small, uniform thickness, safety guarantee, improve the current breakdown characteristics.
4. Double protection: Stable and durable, not easy to heat, effective anti-uv, prolong service life.
5. Flame retardant and high temperature resistance: The insulation layer is made of high quality XLPO with high strength, wear resistance and corrosion resistance.
6. Withstand pressure, bending and toughness: Good cold flexibility, not easy to break the skin, reduce natural wear, twists and turns, no cracking.
7. UV, ozone and hydrolysis resistant: Electron-beam cross-linked compound sheath.
8. High temperature resistance: the XPLO material do not melt or flow.
9. Very long service life: > 25 years at 90℃.
10. Compatible to all popular connectors: MC4 or other types.
Welcome to contact us for the assistance of an expert to start your own solar projects!
