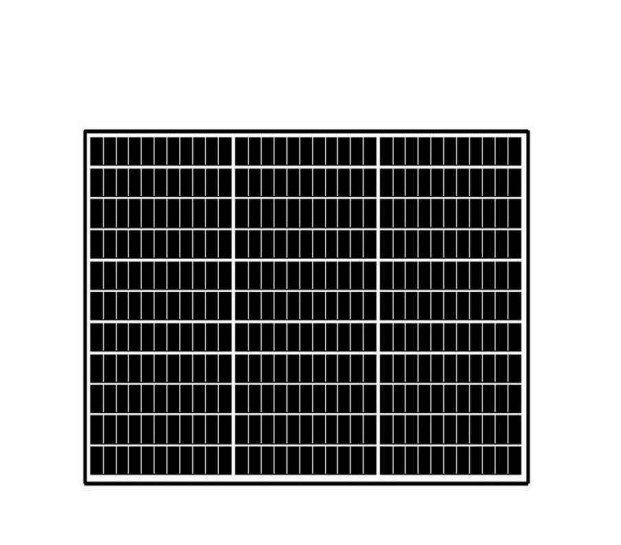

Customized 210MM 50W-190W PERC MBB Mono Solar Panel for Retail

Item NO.:	SR50-190-36M
Product Origin:	China
Color:	Black, silver, full black
Lead Time:	7-10 days
Order(MOQ):	1 pallet
Packing:	Standard or Customized
Warranty:	30 Years Warranty
Certificate:	TUV/CE/CQC/ISO/ROHS/INMETRO

Back to list Enquiry now

Contact Us

New Products

MONO 390W 120cells PERC MBB Black Frame Solar Panel With High Reliability

Half cell 390 watt Black Frame monocrystalline PERC solar panel with 166mm 22% efficiency half cells, to assure high power output and performance at an attractive low cost.
LEARN MORE
MONO 460W 144cells PERC 166MM 9BB Solar Panel With High Reliability

Sunry monocrystalline 460W solar panel ensures higher module efficiency and higher power output. Max. efficiency reaches to 21.2%.
LEARN MORE
New Product 410W 108cells Full Black Color PERC MBB Mono Solar Panel for Residential Application

Half cell 410 watt monocrystalline PERC solar panel with 182mm 22% efficiency half cells, to assure high power output and performance at an attractive low cost.
LEARN MORE
Hot Product 450W 455W 460W 120cells PERC MBB 182MM Mono Solar Panel for Solar Plant Install

Half cell 455 watt monocrystalline PERC solar panel with 182mm 21% efficiency half cells, to assure high power output and performance at an attractive low cost.
LEARN MORE

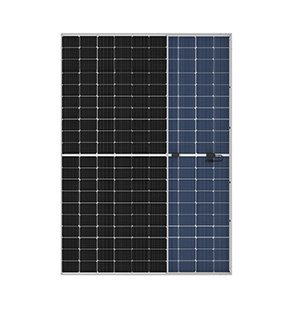

Hot Product 550W 144cells PERC 182MM MBB Mono Solar Panel for Commercial And Industrial Application

Half cell 550 watt monocrystalline PERC solar panel with 182mm 22% efficiency half cells, to assure high power output and performance at an attractive low cost.
LEARN MORE

Products Details

Sunry monocrystalline solar panel ensures higher module efficiency and higher power output. Max. efficiency reaches to 18.64%.

Sunry Small solar photovoltaic modules are designed for DC electrical power system requirements. With 30 years warranty, PERC offers high power, reliable performance for both portable, off-grid and hybrid grid solar projects.

Features

Combination of series circuit and parallel circuit, reduced internal power loss.
High efficiency solar cells cutting design results in the optimized power output under inter-row shading conditions, and low thermal coefficients for higher energy yield at elevated operating temperatures.
Dual stage 100% IV inspection warranting defect-free product, to ensure best quality and superior performance.
Innovative Full-Glue-Filled design of IP65 junction box for long-time weather resistance.
MBB technology decreases the distance between bus bars and finger grid line which is benefit to power increase.
The passivated rear side and laser grooving process of PERC cells to endow with the high efficiency.
>90% higher transmittance EVA, with higher GEL content to provide excellent encapsulation and protect cells from vibration for powerful durability.
Outstanding reliability proven by PVEL for stringent environment conditions: Sand, acid, salt and hail stones; 2400 Pa wind load and 5400 Pa snow load; Anti-PID function to guarantee high performance at low irradiance.
30 years product power warranty, 12 years material and craftsmanship warranty.

Enquiry now

Parameters

Electrical Characteristics At Standard Test Conditions (STC)
Module	SR50-180-36MC
Encapsulation	Glass/EVA/Cell/EVA/Backsheet
Max. Power (W)	50	80	100	150	180
Max. Power Voltage (Vmp/V)	20.1	20.5	21.13	21.85	22.02
Max. Power Current (Imp/A)	2.49	3.9	4.73	5.95	6.42
Open Circuit Voltage (Voc/V)	24.12	24.6	25.36	26.22	26.89
Short Circuit Current (Isc/A)	2.71	4.25	5.16	6.48	6.93
Power Tolerance (W)	3%
Temperature Coefficient of Isc	(0.065±0.015)%/ °C
Temperature Coefficient of Voc	-(80±10)mV/°C
Temperature Coefficient of Pmax	-(0.5±0.05)%/ °C
STC	Irradiance 100w/m2, Cell Temperature 25℃, Air Mass 1.5

Packages

Standard carton box reselling packing, 1/2/5pcs per carton box.
Customized carton packing design printing.

Applications

Portable DC Solar Power System

PERC cutt cell solar panel with higher efficiency over your solar panel system’s lifetime, with superior output in real-world conditions.
High efficiency PERC solar panels is with a compact design and the flexibility to expand your system as your energy needs evolve, energy storage, the electrification of home appliances and more.
Used for DC off grid portable solar system or roof top or ground solar power system energy storage with battery.
Used for traffic, safety, emergency, solar lighting, telecommunication, monitoring system.
Any customized size, special voltage, special install conditions required solar panel all could be produced.
Sunry solar panels with secure and sturdy packaging are widely sold abroad more than 86 countries, such as Lebanon, UAE, Spain, Ukraine, Poland, South Africa, Vietnam, and so on.
