| Item NO.: | Control cable/Instrument cable |
| Product Origin: | China |
| Color: | Black, Red, Blue or Other Colors |
| Lead Time: | 7-10 days |
| Order(MOQ): | 100m per roll |
| Application: | LV Power Control or Signal, Instrument |
| Warranty: | 18 Months Warranty |
| Certificate: | TUV, CE |
Standards: VDE 0207-303-7, VDE 819-102 (TM54), IEC/EN 60754-1/2, IEC/EN 61034-1/2; IEC/EN 60332-1-2,IEC/EN 60332-3-24 ; ASTM, NFC standards etc..

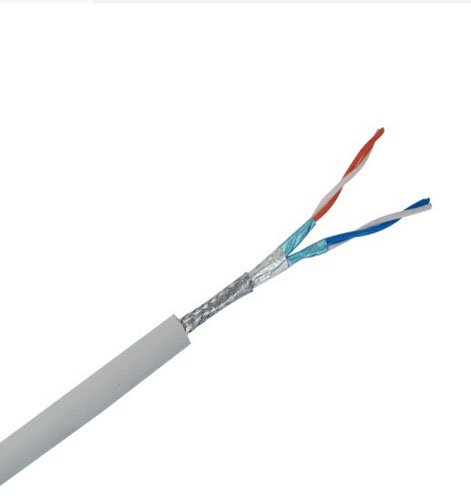

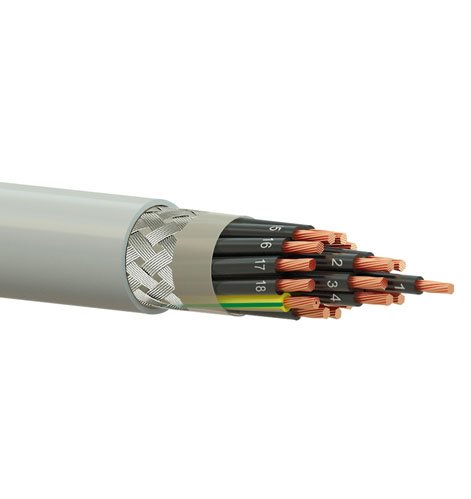

SUNRY Cable supply various types of control cables or instrument cables such as copper wire braided screen cable, steel wire braided armor control cable and non-screened flexible Control Cable. We are able to produce the flexible control cables based on different customized technical specification based on VDE, IEC standard etc., which is widely applied for different using situation.
Application
Control cable/Instrument cable is suitable for the wiring of electric controlling equipment and instrument, monitoring and controlling return circuit,electrical protection and measurement in power distribution unit under the circumstance that the the rated voltage is up to 600/1000V.
Flexible power cable, process control and instrumentation cable for industry and machinery environment with increased requirements to electromagnetic compatibility. The cable is resistant against most usual chemicals, oil and Grease.
| Cable Type | Control/Instrumentation Cable | |||||
| Rated Voltage | 300/500V, Uo/U 450/750V | |||||
| Conductor | Class 1 solid, class 2 stranded, class 5 flexible copper wires | |||||
| Insulation | XLPE (cross-linked polyethylene) or PE, PVC | |||||
| Identification | Different insulation color or Printed number on the surface of insulation | |||||
| Screen | No screen, Copper tape screen, Aluminum tape screen | |||||
| Amour/Screen | TCWS (Tinned Copper Wire braided Screen) screen or Galvanized steel tape/wire armor | |||||
| Outer Sheath | PVC , Flame Retardant PVC or LSZH (Low Smoke Zero Halogen) | |||||
| Number of cores | Generally 2cores, 3cores, 4cores,5cores, 7cores,12cores, 18cores,25cores, 34 cores, and other cores available | |||||
| Cross-section of Core | Generally 0.5mm2, 0.75mm2, 1mm2, 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, and other sizes available | |||||
| Temperature Range | -10~+70℃(wider temperature range can be customized) | |||||
| Bending Radius | 7.5xD (mobile installation) | |||||
KJYVP polyethylene insulated PVC sheathed braided shielded instrumentation control cable
KJYVPR polyethylene insulated PVC sheathed braided shielded instrumentation control flexible cable
KJYVP2 polyethylene insulated PVC sheathed copper tape shielded instrumentation control cable
KJYVP2R polyethylene insulated PVC sheathed copper tape shielded instrumentation flexible cable
KJYVP3 polyethylene insulated PVC sheathed aluminum-plastic composite film shielded instrumentation control cable
KJYVPR Polyethylene-insulated PVC sheathed aluminum-plastic composite film shielded instrumentation flexible cable
KJYVP3 polyvinyl chloride insulated polyvinyl chloride sheathed aluminum-plastic composite film shielded instrumentation control cable
KJYVPR polyvinyl chloride insulation PVC sheathing aluminum-plastic composite film shielding instrumentation control cable
| Packing Type: | Treated Wooden Drum | Packing: | Roll/Drum |
| Drum dimension: | 1100*1100*1000mm | Pallet weight: | 800-1200kg |
Packing: Cut cable in different lengths on drum or reel, possible cutting at the required length.
