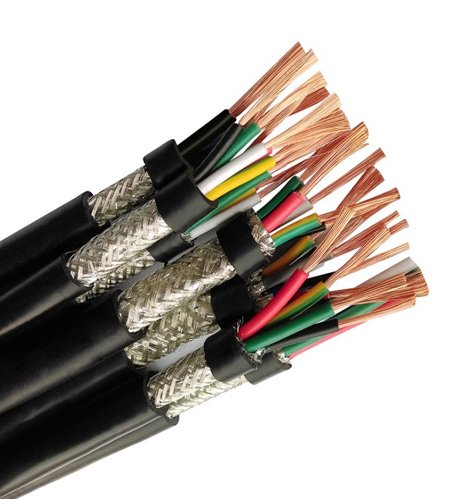

Control Cable GSWB Armored Flexible Instrument Cable

Item NO.:	Control Cable GSWB Armored Flexible Instrument Cable
Product Origin:	China
Color:	Black, Red, Other Colors
Lead Time:	7-10 days
Order(MOQ):	100m per roll
Application:	LV Power Control or Signal, Instrument
Warranty:	18 Months Warranty
Certificate:	TUV, CE

Back to list Enquiry now

Contact Us

New Products

MONO 390W 120cells PERC MBB Black Frame Solar Panel With High Reliability

Half cell 390 watt Black Frame monocrystalline PERC solar panel with 166mm 22% efficiency half cells, to assure high power output and performance at an attractive low cost.
LEARN MORE
MONO 460W 144cells PERC 166MM 9BB Solar Panel With High Reliability

Sunry monocrystalline 460W solar panel ensures higher module efficiency and higher power output. Max. efficiency reaches to 21.2%.
LEARN MORE
New Product 410W 108cells Full Black Color PERC MBB Mono Solar Panel for Residential Application

Half cell 410 watt monocrystalline PERC solar panel with 182mm 22% efficiency half cells, to assure high power output and performance at an attractive low cost.
LEARN MORE
Hot Product 450W 455W 460W 120cells PERC MBB 182MM Mono Solar Panel for Solar Plant Install

Half cell 455 watt monocrystalline PERC solar panel with 182mm 21% efficiency half cells, to assure high power output and performance at an attractive low cost.
LEARN MORE
Hot Product 550W 144cells PERC 182MM MBB Mono Solar Panel for Commercial And Industrial Application

Half cell 550 watt monocrystalline PERC solar panel with 182mm 22% efficiency half cells, to assure high power output and performance at an attractive low cost.
LEARN MORE

Products Details

Standards: VDE 0207-303-7, IEC/EN 60754-1/2, IEC/EN 61034-1/2; IEC/EN 60332-1-2,IEC/EN 60332-3-24 ; ASTM, NFC standards etc.

SUNRY Cable supply various control cables and instrumentation cables. We produce control cable ( or referred to GSWB Flexible Instrument Cable) as per VDE, IEC standard etc.

This type control cable working nominal voltage is 300/500V,class 5 plain copper wire conductor, galvanized steel wire braid (GSWB) armored flexible instrumentation cable. The GSWB control cables covers HSLHSH cable with LSZH insulation and sheath, and YSLYSY cable with PVC insulation and sheath.

Application

The GSWB flexible control cables with standard VDE0250 are widely used in different industrial scenarios, for signal transmission, control, regulating,measuring etc. The flexibility of cables enable swift movement in instrument equipment. The galvanized steel wire braided amour enables the cables installed where there is light mechanical stresses on cable.

The LSZH(Low Smoke Zero Halogen) of HSLHSH cable is widely used in application where is high populations which save life in case of fire.

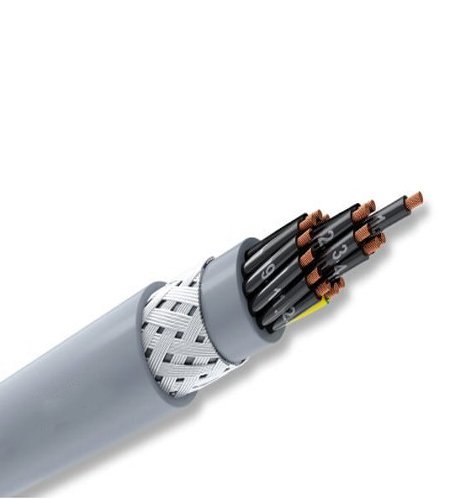

Construction

Cable Type	HSLH GSWB Control cable	YSLY GSWB Control Cable
Rated Voltage	300/500V or 450/750V or 600/1000V
Conductor	Class 5,plain copper wire strands
Insulation	Low Smoke Halogen Free (LSHF)	Polyvinyl Chloride (PVC)
Armoring	Galvanize Steel Wire Braid armour (GSWB)
Outer Sheath	Low Smoke Halogen Free (LSHF)	Polyvinyl Chloride (PVC)
Number of cores	Generally 2cores, 3cores, 4cores,5cores, 7cores,12cores, 18cores,25cores, 34 cores, and other cores available
Cross-section of Core	Generally 0.5mm2, 0.75mm2, 1mm2, 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, and other sizes available

Packages

Packing Type:	Treated Wooden Drum	Packing:	Roll/Drum
Drum dimension:	110011001000mm	Pallet weight:	800-1200kg

SUNRY have rich experience in manufacturing control cable as per VDE ,Germany standard and supporting customers from different industry.We accept customized cables as per industrial standards and customer demand, to meet different specification, standards, and application, such as different cores, sizes and instrument cables with tinned steel tape armoured cable, different insulation materials , marking sheath color, etc.
For more information or price of GSWB Flexible Instrument control Cable, free to contact us! We will reply to you that day with feasible prices and technical documents in time!
